What is OAI Link?

OmegaAI Link is the Daemon device that runs as a service on the dedicated machine which sends and receives images from traditional DICOM stations that do not support DICOM web.

Note: Download code for Link Installer is written on Auth API.

Link Hardware Requirements

The OmegaAI Link requires the following hardware to function as intended.

Operating System	Minimum	Recommended
OS	Microsoft Windows 10 or 11 (64 Bit)	Microsoft Server 2016 or newer (64 Bit) Standard or Datacenter Edition
CPU	4 cores	i7 or better
RAM	16 GB	16 GB
Drives	OS & Application 100 GB Cache 500 GB	1 TB recommended (SSD or equivalent IOPS)
LAN	1 Gbps with Static IP and appropriate DNS record	1 Gbps with Static IP and appropriate DNS record

Dedicated System Resources:

Any server or computer utilized for RamSoft OmegaAI Link should be reserved for the sole purpose of running the solution. Installing other software or utilizing the resource for other purposes can have unforeseen impacts, in which case RamSoft cannot guarantee optimal functionality.

How to Install OmegaAI Link

OmegaAI Link installer can be downloaded on the managing organization's screen. This action can only be performed by the user who is given privilege on behalf of the respective organization.

Follow the below steps to download OmegaAI Link

1. Login to OmegaAI.

2. Navigate to the managing Organization screen by clicking Organization from the left navigation bar.

3. Go to the device tab.

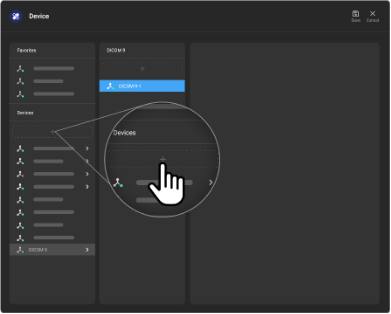

4. To add a new device, click + icon (more details in section, How to Manage Devices in Correlation with OAI Link).



5. Enter Device Name, AE Title, IP Address/Hostname, and port number. (i.e., qa-rispacs, qa-rispacs, qa-rispacs, 104 for Ramsoft Powerserver 6.0).

6. Click the Download button.

Note: the link has a set 60 minute expiration.

7. Execute the downloaded EXE as administrator.

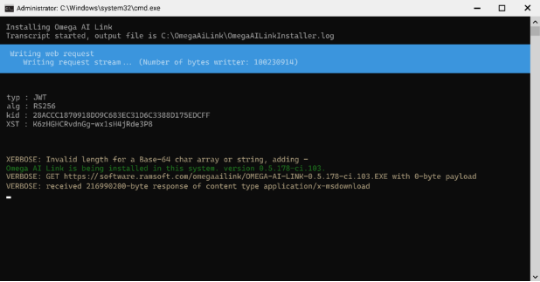

8. The OmegaAI Link installation process begins as shown below.



9. After successful login you will see the device name under the device tab of the managing organization tab.

10. Whenever there is a new version of OmegaAI Link available, OmegaAI automatically updates as per the new version (i.e., no manual intervention required).

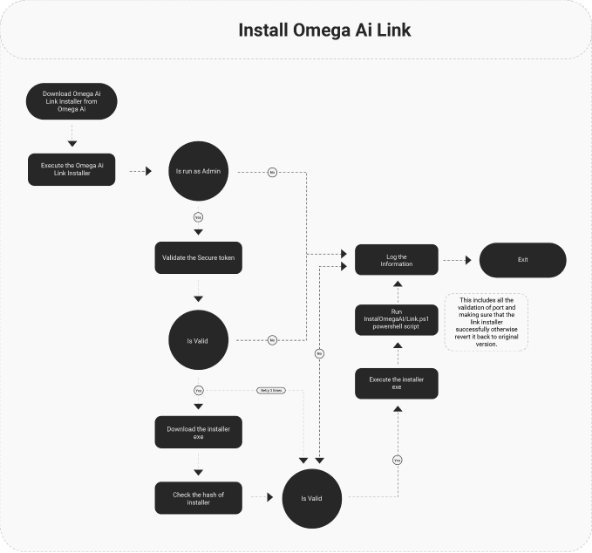

The below diagram further outlines the installation process of the OmegaAI Link.

Note: In case any errors arise, check the logs under the directory "C:\OmegaAILink".

If you are unable to install, please check if service exists or not. If service exists then you may need to delete the OmegaAI Link Service and thus follow the uninstallation process (found in How to Uninstall OAI Link).

How to Uninstall OAI Link

To uninstall OmegaAI Link follow the below steps:

• Delete Service

• sc.exe stop RamSoft OmegaAI Link Service

• sc.exe delete RamSoft OmegaAI Link Service

• Delete Installation Folder

• It is stored on location C:\Program Files\RamSoft.OmegaAILink

OAI Link Caching

The OmegaAI Link will be used for caching purposes for more efficiency in the overall process. As it is a costly and time-consuming process to fetch data from the server every time, the OAI Link will now be used to make it to the lightweight web server and store the pixel data while we receive it.

How is the local link identified?

The IP address is used to verify the link. To ensure further, the public IP is used to identify the local Links as all links should have the same public IP address.

How is pixel data stored on the local disk?

To ensure that the PHI data is secure at all the time, before storing the local data in the cache it will undergo encoding.

Note: AESGCM algorithm is used to encode the pixel data.

How does the link server run?

From the initial commencing phase of the link, the secure web server will also run. The server will also have attached a domain certificate (HTTPS).

How can you identify the sub-domain of the Local Link?

The main domain name would be, omegaailink.com. (OMEGAAILINK-{link-id}-{organization-name}.omegaailink.com). Whereas the Link-id, can be found in the DICOM server configuration file (page 6).

Activate Custom Domain in Local Machine

Please follow the below steps to activate a custom domain in your local machine.

1. Please open the editor (notepad) as administrator and open the host file: C:\Windows\System32\drivers\etc\hosts



   Link-id: Can be found in DICOM server configuration file.



   Location: C:\ProgramFiles\RamSoft.OmegaAILink\DICOMServerConfig.json



   Organization-Name: Organization name will contain only alphanumeric characters, all other characters will be replaced with “-”.

2. Once the configuration is saved, restart the RamSoft OmegaAI Link Service.

3. Add client ID to Launch darkly feature flag.

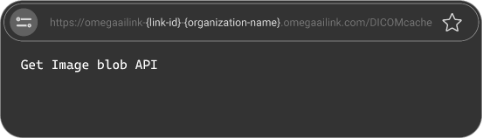

4. To test domain on browser use the following: https://OMEGAAILINK-{link-id}-{organization-name}.omegaailink.com<u>/DICOMcache</u>

5. Once Link Caching has been successfully configured, the following message will be displayed:



Notes: It is recommended for all testing environments to first bind the domain with your local IP address. You may use 127.0.0.1 as your IP address.

Example: 127.0.0.1 OMEGAAILINK-{link-id}-{organization-name}.omegaailink.com

• Only one space should exist between IP and Link here: 192.168.XX.XX OMEGAAILINK-{link-id}-{organization-name}.omegaailink.com

• OMEGAAILINK must be in upper case and Organization Name should follow the same letter case as entered in OmegaAI (for the Link Name).

  As seen here: 192.168.XX.XX OMEGAAILINK-{link-id}-{organization-name}.omegaailink.com

Data Communication & Security

Data Communication

OmegaAI Link receives data from configured modalities using DICOM standards TCP/IP Port. This is all configured at the time of installation.

Modalities

Modalities from the hospital facilities will send data over TCP/IP protocol unencrypted via port (configurable in OmegaAI).

Note: This must be LAN to LAN communication, which should suffice if all communications are local.

Moreover, DICOM TLS can be incorporated for OmegaAI Link upon client request.

Data Security

For enhanced security, the received data is transferred to the OmegaAI server using secured "https:" protocol. This process calls out secured API on OmegaAI server which in turn is authenticated by OAuth 2.0 standard.

Encryption

Encryption in transit is applied using TLS v1.2 when communicating on premise to Azure.

Stand-Alone Device

As OmegaAI Link is a stand-alone device, encryption at rest cannot be standardized at the disk or operating system level.

Note: OS disk is encrypt and decrypt.

How to Manage Devices in Correlation with OAI Link

The Device section allows you to view a list of DICOM Web and DICOM proxies that are integrated with the organization.

Adding a new device involves two steps; adding the device and adding a DICOM station to connect the device to OmegaAI.

Adding New DICOM Device

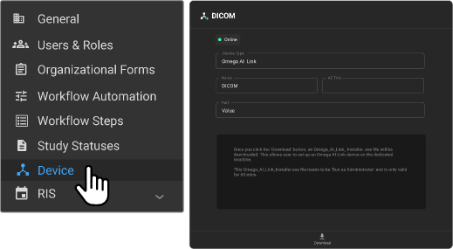

1. Click Organization from the left navigation bar.

2. Click Device. The Device page opens.

3. Enter the following details:

• Device Type: By default, the device type is OmegaAI Link. This field cannot be edited.

• Name: Name of respective machine/device.

• AE Title: Application Entity Title is the link identity.

• Port: Port number of the respective device.

4. Click Download to download and install OmegaAI Link.

The new device is added to the list of devices.

Adding DICOM Station

DICOM stations use the Transmission Control Protocol (TCP) to connect to the OmegaAI Link device, which connects to OmegaAI.

1. As soon as a device is created, a panel opens adjacent to the list of devices. Click + in the panel.

2. Perform the following in the General section:



• DICOM Stations: Enter the name of the DICOM station that you want to add.

• AE Title (mandatory field): Enter the title of the Application Entity (AE).

• IP Address/Hostname: Enter the IP Address of the station that will be used for DICOM communication.

If the IP Address is dynamic, enter the name of the machine.

• Port (mandatory for DICOM send and optional for receive): Enter the port number of the station that will be used for DICOM communication.

• Enable TLS: Select this checkbox to encrypt the DICOM communication.

• Is Archive Server: Select this checkbox if it is an archive server.

• Need IOCM Notification: Select this if Imaging Object Change Management (IOCM) notification is required.

• DICOM Station Description: Enter the description of the DICOM station.

• Export: Click to export the DIOCM station configuration to JSON format. You can update or edit the exported configuration.

• Import: After modifying the configuration details, click Import to upload it.

• Active: Click ActiveΓÇ»to set the DICOM station to active.

• Enable Heartbeat: Select this button to enable heartbeat.

• Test Connection: After you have completed all the details for the DICOM station, click this button to test the connection.

• Status: This field is automatically populated. It indicates the status of the DIOCM status based on the heartbeat.

  Depending on the status, this field displays the following values:

  • Active: Indicates that the DIOCM station is active.

  • Unknown: Indicates that the DIOCM station is unknown.

  • Offline: Indicates that the DIOCM station is offline.

  If the DICOM station is offline, the system will not attempt to actively perform DICOM-send.

3. Select the following options in the DICOM Stations Features section, as required:

• Enable Heartbeat: Select this button to enable heartbeat.

• Send to device DICOM stations: Select this checkbox to allow OmegaAI to send studies to the DICOM station.

• Query/Retrieve: Select this checkbox to allow the DICOM station to service DICOM queries or retrieve studies.

• Sending Original Patient ID and Issuer: Select this checkbox to preserve and send the original Patient ID and Issuer of Patient ID DICOM tag.

  Note: This refers to the information that was originally received.

Understanding DICOM Heartbeat

The DICOM heartbeat is a utility that prevents the DICOM station from sending studies to a station that is offline.

Note: It sends a DICOM ping to the remote station every 10 minutes to verify whether the station is up or not.

DICOM heartbeat consists of three statuses,

• Online

If the DICOM heartbeat is enabled, and the station is up and responding to the pings, then the status of the station appears as Online and a green indicator is displayed.

• Offline

If the DICOM heartbeat is enabled and the DICOM pings fail, the status of the station appears as Offline and a red indicator is displayed.

• Unknown

If the DICOM heartbeat is not enabled for a station, its status will appear as Unknown.

DICOM Query Echo & Search

DICOM Query Echo is used to verify the connection status (i.e. Online, Offline, Unknown, etc.), whereas DICOM Query Search is utilized to search studies and retrieve DICOM objects from other DICOM devices (i.e., remote stations).

DICOM Query Echo

To query successfully, we need to first ensure that the target device/station is online. This can be done by using Echo (click TEST CONNECTION button to verify device status) in the Organization Device detail page.

Follow the below steps to navigate to the Organization Device detail page.

1. Click Organization from the left navigation bar.

2. Click Device. The Device page opens.

Perform DICOM Query Search

Please follow the below steps to perform DICOM Query Search.

1. Click the dropdown arrow in the Search bar.

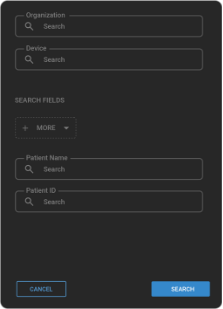

2. Select DICOM Query. A panel appears.



3. Enter the following details in the panel:

   • Organization[Mandatory]: Enter the name of the organization the

   DICOM objects belongs to. This field displays possible matches to the text as you type.

   Note: You must be associated with the organization

   that you are searching in.

   • Device: Enter the device name. This is also a search as you type

   field.

   • Search Fields: Use these fields to further narrow down your search

   criteria.

   Click More to add more fields. All the columns associated with studies are displayed.

   You can search for fields by typing in the Search bar.

   Click Delete to remove a field from the search criteria.

4. Note: You cannot search for DICOM objects with specifying the organization and device name.

5. Patient: Use to search for specific patient(s).

6. Organization: Use to search for specific organization(s).

7. Device: Use to search for DICOM objects that are in other DICOM devices.

8. Click Search to search or click Cancel to discard.

9. Click Save. After saving, all matching records are displayed.

10. Click the Study avatar associated with the study or studies in the result.

11. Click RETRIEVE STUDY.

    The RETRIEVE STUDY button becomes active only after you

    select a study.

    After a few seconds, the circular arrow-shaped icon is

    replaced with TRACK.

    Note:Track indicates that the study retrieval process is in progress.

12. Click TRACK to view the progress in the Task Log page.

Send a Study

Send study can be utilized by users to send a study to a remote device/station. Also known as DICOM Transmit or DICOM Store Push.

Note: Study can be anonymized.

Send Studies to other Devices

1. From the worklist, click once on desired study. The Omega dial is displayed.

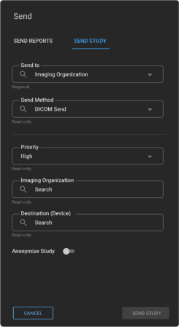

2. Click Send Study. The Send Study panel opens.



3. Enter the following information:

   • Priority: Select one of the following pre-configured options: High, Medium, or Low.

   • Imaging Organization: Type the name of the imaging organization to which you want to send the image. As soon as you start typing, matching organizations are displayed.

   • Destination (Device): All the devices associated with the imaging organization you have selected are available. Select the appropriate device.

   Note: You can select only one device.

4. Click SEND to send the study or CANCEL to discard.

   If you click Send, a message stating that transmission has been successful is displayed and the studies are added to the queue.

   Note: You can check the progress and status of the transmission in the Task Log.
