Workflow Scripting

Scripting

DICOM Scripting

DICOM Scripting attributes DICOM Proxy and DICOM Wb.

DICOM Proxy

Operations:

DICOM scripting within the DICOM Proxy currently supports 4 operations:

• DICOM Send (CSTORESCU): Sending DICOM objects to another entity.

• DICOM Receive (CSTORESCP): Receiving DICOM objects from another entity.

• Outbound Find (CFINDSCP): Applying scripts on the result dataset of C-FIND operations, which return search results.

• Inbound Find (CFINDSCU): Applying scripts on the request dataset of C-FIND operations, which contain search parameters.

Operation Types are defined as enums in DICOMOperationType.cs of RamSoft.Common. This provides users flexibility to determine the scenario in which they want to execute their logic.

Sample Script:

This script modifies the accession number by pre-pending it with 'RAM' when receiving objects. If accession number is '1234', then the result will be 'RAM1234'.

(function() {
    var accessionNum;

    // For Operation DICOM Send
    if (Operation === 'CSTORESCU') {
        // Read for AccessionNumber
        if (DICOMObject["00080050"]) {
            accessionNum = DICOMObject["00080050"]["Value"];
        }

        // Update for AccessionNumber
        if ("00080050" in DICOMObject) {
            DICOMObject["00080050"] = {"vr" : "SH", "Value": [ 'RAM ' + accessionNum]}
        }
    }
})();

DICOM Web

Operations:

DICOM scripting within the DICOM Web involves several operations:

• Search Inbound (SearchInbound): Searching for DICOM objects in the inbound direction.

• Search Outbound (SearchOutbound): Searching for DICOM objects in the outbound direction.

• Retrieve Inbound (RetrieveInbound): Retrieving DICOM objects in the inbound direction.

• Retrieve Outbound (RetrieveOutbound): Retrieving DICOM objects in the outbound direction.

• Store Inbound (StoreInbound): Storing DICOM objects in the inbound direction.

• Store Outbound (StoreOutbound): Storing DICOM objects in the outbound direction.

Operation Types are defined as enums in DICOMOperationType.cs of RamSoft.Common.

Sample Script:

This script demonstrates various scenarios of modifying DICOM attributes based on different operations.

(function () {
    var patientName;
    if (Operation === 'SearchOutbound') {
        // Read for PatientName
        if (DICOMObject['PatientName']) {
            patientName = DICOMObject['PatientName'];
        }
        // Update for PatientName
        if ('PatientName' in DICOMObject) {
            DICOMObject['PatientName'] = 'SearchOut^' + patientName;
        }
    }

    if (Operation === 'SearchInbound') {
        // Read for PatientName
        if (DICOMObject['PatientName']) {
            patientName = DICOMObject['PatientName'];
        }
        // Update for PatientName
        if ('PatientName' in DICOMObject) {
            DICOMObject['PatientName'] = 'SearchIn^' + patientName;
        }
    }

    var accessionNum;

    if (Operation === 'StoreOutbound') {
        // Read for AccessionNumber
        if (DICOMObject['00080050']) {
            accessionNum = DICOMObject['00080050']['Value'];
        }

        // Update for AccessionNumber
        if ('00080050' in DICOMObject) {
            DICOMObject['00080050'] = { vr: 'SH', Value: ['StoreOut^' + accessionNum] };
        }
    }

    if (Operation === 'StoreInbound') {
        // Read for AccessionNumber
        if (DICOMObject['00080050']) {
            accessionNum = DICOMObject['00080050']['Value'];
        }

        // Update for AccessionNumber
        if ('00080050' in DICOMObject) {
            DICOMObject['00080050'] = { vr: 'SH', Value: ['StoreIn^' + accessionNum] };
        }
    }

    if (Operation === 'RetrieveOutbound') {
        // Read for AccessionNumber
        if (DICOMObject['00080050']) {
            accessionNum = DICOMObject['00080050']['Value'];
        }

        // Update for AccessionNumber
        if ('00080050' in DICOMObject) {
            DICOMObject['00080050'] = { vr: 'SH', Value: ['RetrieveOut^' + accessionNum] };
        }
    }

    if (Operation === 'RetrieveInbound') {
        // Read for AccessionNumber
        if (DICOMObject['00080050']) {
            accessionNum = DICOMObject['00080050']['Value'];
        }

        // Update for AccessionNumber
        if ('00080050' in DICOMObject) {
            DICOMObject['00080050'] = { vr: 'SH', Value: ['RetrieveIn^' + accessionNum] };
        }
    }
})();

Workflow Scripting Using the Script Editor

The Workflow Script Editor empowers users to tailor workflows using JavaScript scripting. This feature grants managing organizations the flexibility to design custom scripts that define their workflow, which can then be inherited by child or imaging organizations. The Script Editor provides shortcuts for commonly used operations, JSON DICOM resources, and other parameters, facilitating seamless customization.

Steps to Configure Workflow Using the Script Editor:

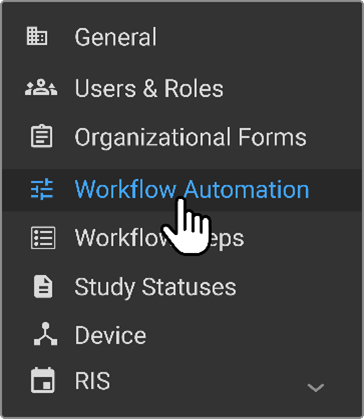

1. Access Workflow Scripting: Navigate to the Workflow Automation section.

2. Open Script Editor: Click on top right side of Workflow Automation, which will direct you to the Workflow Scripting page.

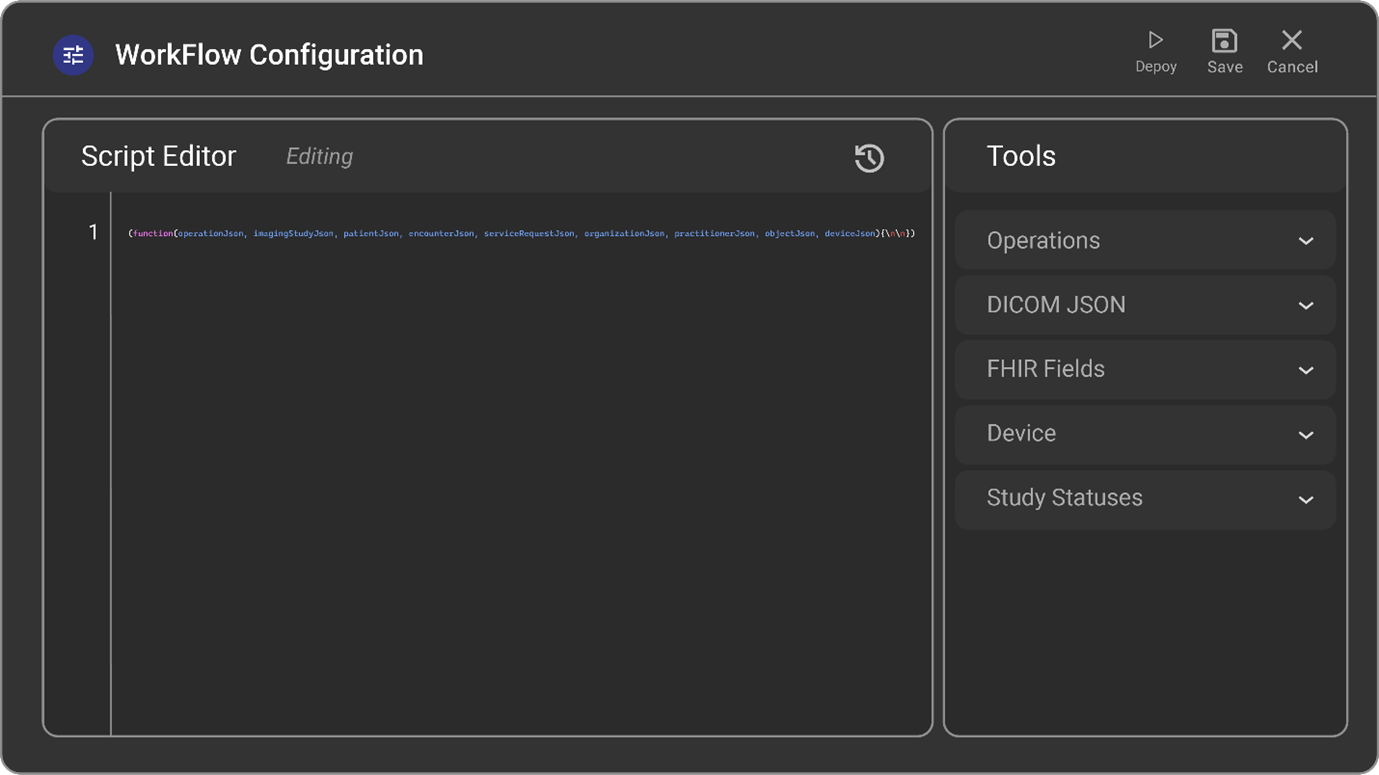

3. Edit Script: Click on the "Edit" button to open the script in the Workflow Script Editor. This action will reveal the Tools drawer, containing various options to streamline script creation.

4. Utilize Tools Drawer: The Tools drawer offers several functionalities:

Operations: Features shortcuts for Fetch, Retrieve and Route, Route, and Status Transition operations, facilitating workflow customization.

DICOM JSON: Helps compose the DICOM JSON structure necessary for a Fetch operation.

FHIR Fields: Provides access to commonly used FHIR fields for easy integration. You can drag and drop these fields into the Script editor.

Devices: Displays the list of stations associated with the specific organization.

Study Statuses: Displays a list of study statuses for reference.

5. Script Creation: You can either directly type the workflow script in the Workflow Script Editor or utilize the shortcuts provided in the Tools drawer to streamline script creation.

6. Deploy Script: Once the script is created, click on "Deploy." This action ensures that the script is ready and executed when the relevant event occurs.

7. Save or Discard Changes: After creating or editing the script, you can choose to "Save" to retain the changes or "Cancel" to discard them.

Customizing Workflow with Operations:

1. Fetch Operation: Executes a C-FIND against all archive stations associated with the managing organization using the OmegaAI Link device. This operation searches for studies based on defined search parameters within the C-FIND JSON structure. Note: Only DICOM stations with the "Archive Server" option enabled will be searched.

2. Retrieve and Route Operation: Fetches a study from an archive station and subsequently routes it to another station. The common use case is to send a study within the system along with the pre-fetched prior studies.

Sample Fetch and Routing Script:

(function(operationJson, imagingStudyJson, patientJson, encounterJson, serviceRequestJson, organizationJson, practitionerJson) {
    function getExtensionValue(imagingStudyJson, url, type) {
        let data = imagingStudyJson['extension'].find((item) => {
            return item.url == url;
        });
        return data ? data[type] : null;
    }

    if (getExtensionValue(imagingStudyJson, 'http://hl7.org/fhir/us/core/StructureDefinition/status', 'valueString') == 'COMPLETED') {
        let findDICOMJson = {};
        findDICOMJson["00100020"] = { "vr": "LO", "Value": [ patientJson.identifier[0].value ] };
        findDICOMJson["00100010"] = { "vr": "PN", "Value": [ patientJson.name[0].text ] };
        // Find related studies
        host.fetch(imagingStudyJson, patientJson, findDICOMJson);
    }

    if (operationJson.type == 'Fetched Studies') {
        let studies = operationJson.studies;

        // determine which studies is relevant
        for (let study of studies) {
            if (study.description == 'PET/CT SKULL TO MILD THIGH') {
                host.retrieveAndRoute(study, 'toronto-hgua', 3);
            }
        }

        // Route to device
        host.route('toronto-hgua', 3);
    }
})();

3. Route Operation: Sends a study within OmegaAI to another system. This operation is accomplished by posting a DICOM store task, which is then processed by the OmegaAI Link device. Note: A common use case involves sending a study within the system along with pre-fetched prior studies.

Sample Script for Routing Objects:

This script will send individual objects as soon as they are received or imported.

(function(operationJson, imagingStudyJson, patientJson, encounterJson, serviceRequestJson, organizationJson, practitionerJson, objectJson, deviceJson) {
    if (operationJson.type == 'DICOM Object Received' || operationJson.type == 'DICOM Object Imported' ) {
        // Route object to device (objectJson, imagingStudyJson, deviceName,deviceId)
        host.routeObject(objectJson, imagingStudyJson, '11MED PACS LitePowerServer', 51);
    }
})
