Organization Affiliation

The Organization Affiliation feature enables a one-directional relationship between a Primary Organization (Main Org) and a Participating Organization (Affiliate Org). This allows users from the Affiliate Org to access studies from the Main Org based on predefined role mappings.

Key Concepts​

One-Directional Access: Only Affiliate Organization users gain access to Main Organization studies.

Role-Based Privileges: Affiliate users inherit privileges based on mapped roles.

Affiliation Management: Admins can create, edit, view, and remove affiliations.

FHIR Compliance: Follows FHIR standards for Organization Affiliation resource.

Prerequisite: Admin privileges in the Primary Organization.

Steps:​

  1. Navigate to Organization Directory → Affiliation Management.

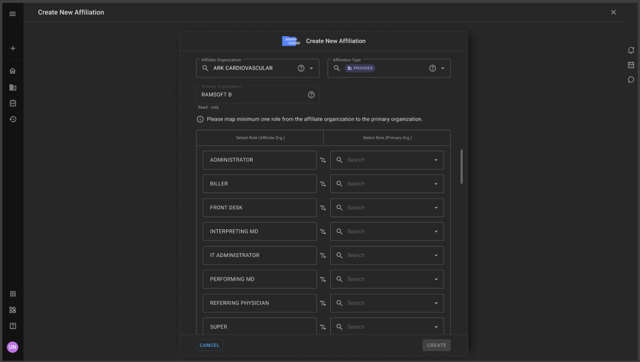

  2. Click "Create New Affiliation".

  3. Fill in the following details:

    • Affiliate Organization: Search and select the participating organization (supports meta-search across child, master, and referring orgs).

    • Affiliation Type: Select from FHIR-defined values (e.g., provider, vendor).

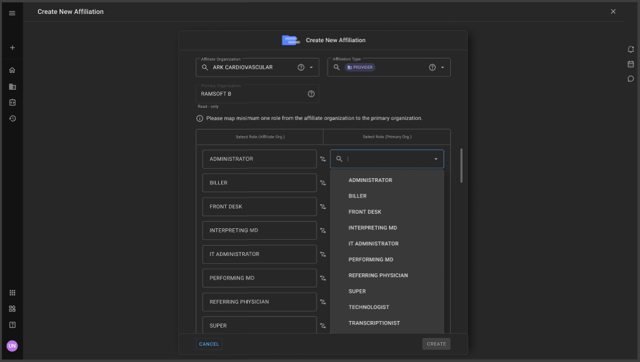

    • Primary Organization Role: Select a role from the Main Org that will be assigned to Affiliate Org users.

    • Role Mapping:

      • If "Apply a Single Role to All Affiliate Roles" is checked, all Affiliate Org users inherit the selected Main Org role.

      • If unchecked, manually map each Affiliate Org role to a Main Org role.

  4. Click "Create" (enabled only when all fields are filled).

  5. Confirm details in the popup and proceed.

Tooltips:​

  • Affiliate Organization: "The external organization you are affiliating with."

  • Affiliation Type: "Defines the relationship type (e.g., provider, vendor)."

  • Primary Org Role: "The role assigned to affiliated users in the Main Org."

    Organization Affiliation

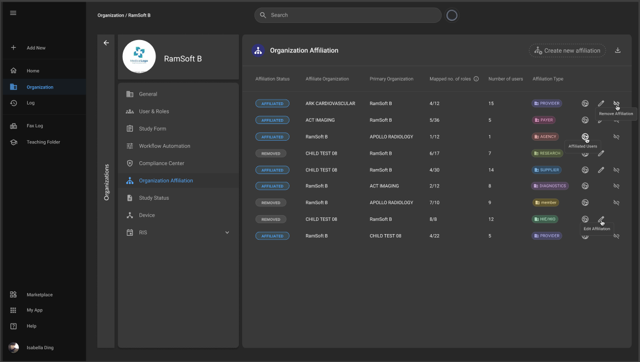

List & Manage Existing Affiliations​

Prerequisite: Admin access in either Primary or Affiliate Org.

Features:​

  • View all affiliations in a sortable table (sorted by last update).

  • Filter by Active (AFFILIATED) or Inactive (REMOVED) status.

  • "Mapped Users" tooltip: "Number of roles successfully mapped (e.g., 4/12 means 4 out of 12 roles mapped)."

  • "Affiliated Users": Click to view users from the Affiliate Org who can access Main Org studies.

  • Edit/Remove affiliations (only for Active ones).

    Organization Affiliation

Deleting an Affiliation:​

  1. Click "Remove Affiliation".

  2. Confirm in the popup.

  3. Status changes to REMOVED (logged in audit trail).

Affiliated Users Management​

After affiliation, Affiliate Org users appear under "Affiliated Users" in the Main Org's User Management.

Columns in Affiliated Users List:​

  • User: Name

  • Login Email

  • Affiliated Roles: User's roles in Affiliate Org.

  • Primary Org Roles: Mapped roles in Main Org.

  • Affiliated User Types

  • NPI ID

  • Last Login Time

Notes:​

  • Affiliated users are hidden in the Main Org's regular user list.

  • If a user belongs to both Main and Affiliate Orgs, their Main Org role takes precedence.

Role Mapping & Privileges​

  • Privilege Calculation:

    • Affiliate users get access based on mapped roles (e.g., "Performing MD" in Affiliate Org → "Reading Physician" in Main Org).

    • If a single role is applied, all Affiliate users inherit that role's privileges.

  • Role Deletion Warning:

    • If a role used in affiliation is attempted to be deleted, the system blocks it with:
      "⚠️ This role cannot be deleted: Role is used in organization affiliation mappings."

      Organization Affiliation

UAC (User Access Control)​

  • Only users with "Organization Affiliation" UAC enabled can manage affiliations.

  • Default Settings:

    • ON for ADMINISTRATOR/RAMSOFT roles (new orgs).

    • OFF for all other roles.
