Overview​

Hanging Protocols in the OmegaAI Image Viewer now go well beyond flat 2D stacks. This release adds MPR, rotating PET MIP, and PET-CT fusion viewports; smarter, metadata-driven series matching; and four new default protocols built around them.

What's New​

1. MPR, Rotating PET MIP & PET-CT Fusion Viewports​

What changed:​

Hanging Protocol viewports are no longer limited to a flat 2D stack. Seven new view codes let a viewport open directly into an advanced view as soon as a study loads, with no manual setup:

• CT: MPR Axial / Coronal / Sagittal — builds a multiplanar reconstruction from the thinnest axial CT series in the chosen plane. Even an axial-only CT can open as coronal or sagittal.
• PT: PET 3D MIP — a rotating whole-body PET projection, built automatically from the attenuation-corrected PET series.
• PET-CT: Fusion Axial / Sagittal / Coronal — PET overlaid on CT in the chosen plane, using the PET display preset's colormap.

Slab thickness and projection (Maximum, Average, or Minimum Intensity) can be saved for each MPR and fusion viewport, so the viewport opens exactly as configured. If a study can't support one of these views, the viewport shows the best available 2D series instead of going blank — for fusion, it shows CT alone with a "Fusion unavailable" indicator.

Benefit:​

Radiologists land on the right multiplanar or fused view automatically — no manual reconstruction or series hunting required.

2. Display Presets for Every Modality​

What changed:​

Each viewport's rules now include a single Display Preset picker, listing the presets available for that viewport's modality — CT, MR, US, PT, NM, and more, not just PET as before. Selecting a preset applies its window level and, where configured, its colormap and auto-windowing behavior together.

Benefit:​

Consistent, clinically correct windowing and colormaps on open, authored once and reused across every protocol.

3. Smarter, Metadata-Driven Series Matching​

What changed:​

Viewport matching rules can now weigh study details beyond modality and body part — slice thickness, study description, and dozens of other fields — with numeric and multi-value comparisons. Each rule can be a strict requirement or just a preference, so OmegaAI still hangs the best available series rather than leaving a viewport empty.

Benefit:​

Protocols can express real clinical preferences — like favoring a primary-read series over a thin reconstruction — without ever risking a blank viewport.

4. Four New Default Hanging Protocols for PET, PET-CT, and MPR​

What changed:​

OmegaAI's Default Hanging Protocol catalog adds four new protocols: PET Default, PET-CT Default, PET-CT Quick Read, and MPR Default, each built around the new viewport types above. PET and PET-CT cells apply a clinically standard SUV-scaled colormap, and fall back safely with a clear indicator when a study's data can't support SUV scaling.

Benefit:​

PET, PET-CT, and MPR-heavy workflows get a clinically reviewed, ready-to-use starting protocol out of the box.

Important Notes​

• Backward compatible: Existing protocols behave exactly as before, with no impact on studies that don't use the new viewport types.
• Series matching: A condition on a metadata field that doesn't apply to the bound series simply never matches — it doesn't cause an error.
• SUV safety fallback: A "SUV unavailable" indicator with hidden SUV stats is expected behavior when a study's DICOM metadata can't support SUV calculation — it isn't an error.

Where to Find It​

• MPR, PET 3D MIP & Fusion view codes: Hanging Protocol Configuration → View Codes panel → drag CT: MPR Axial/Coronal/Sagittal, PT: PET 3D MIP, or PET-CT: Fusion Axial/Sagittal/Coronal onto a viewport
• Display Presets & series matching: Hanging Protocol Configuration → select a viewport → HP Rules tab
• New Default protocols: Image Viewer → Quick Access Strip or Layout Panel → PET Default / PET-CT Default / PET-CT Quick Read / MPR Default

Overview​

PET/CT SUV measurement gets a dedicated Volumetric SUV tool with a full-view region overlay and adjustable thresholds, plus a fix so every ROI tool reports SUV correctly on fused viewports.

What's New​

1. Volumetric SUV Becomes Its Own Tool​

What changed:​

The Probe tool is back to reporting a plain point SUV value on PET data, just as it does on any other modality. Lesion segmentation now lives in its own Volumetric SUV tool, available from the toolbar, the Image Control Wheel, or a custom hotkey. Clicking a lesion automatically segments the region, reports SUV max/mean/peak and volume, overlays the boundary across every plane and the whole-body MIP, and lets you adjust the segmentation threshold or SUV normalization on the fly.

Benefit:​

A quick point SUV check with Probe, and a dedicated tool with visual confirmation and adjustable thresholds when you need volumetric measurement.

2. PET/CT Fusion ROI Tools Now Report SUV, Not HU​

What changed:​

Rectangle, Elliptical, Circle, and Freehand ROI tools drawn on a fused PET/CT viewport now report SUV statistics instead of Hounsfield Units, matching what the same tool reports on a PET-only viewport.

Benefit:​

SUV measurement is now consistent across every ROI tool in Fusion Mode — no more switching viewports just to get a valid SUV reading.

Important Notes​

• Volumetric SUV Tool: A newer capability that may not yet be enabled in every environment — reach out to your OmegaAI representative if it doesn't appear in your toolbar. Measurements created by the Probe tool before this change remain labeled as Probe entries.
• SUV safety fallback: A "SUV unavailable" indicator with hidden SUV stats is expected behavior when a study's DICOM metadata can't support SUV calculation — it isn't an error.

Where to Find It​

• Volumetric SUV Tool: Image Viewer → Probe toolbar group (Fusion Mode) → Volumetric SUV; also available via the Image Control Wheel and Hotkey Customization
• Fusion ROI SUV: PET/CT Fusion Mode → draw any ROI tool on the fused viewport

Overview​

Window Level presets in the OmegaAI Image Viewer are now tailored to the modality you're actually viewing, replacing the old CT-centric preset list that used to appear on every study type regardless of modality.

What's New​

1. Presets Filtered by Modality​

What changed:​

The Window Level preset list is now filtered to the modality being viewed — CT, MR, US, PT, NM, and more each get their own relevant list, instead of a single generic CT-centric list showing up everywhere.

Benefit:​

Every modality gets presets that are actually clinically relevant to it, so you're never scrolling past irrelevant CT presets on an MR or ultrasound study.

2. Corrected CT Presets & Auto-Windowing for Other Modalities​

What changed:​

CT presets like Brain, Stroke, Mediastinum, Soft Tissue, and Abdomen now use corrected clinical values, with a new Subdural preset added. Modalities where a fixed window doesn't make sense — MR, US, CR/DX, and NM — now default to auto-windowing strategies instead, calculated from the image data itself.

Benefit:​

Presets reflect current clinical standards, and modalities that never suited fixed numeric values now window correctly by default.

3. Compound Presets for PET & Nuclear Medicine, Mammography Support​

What changed:​

PET and Nuclear Medicine presets now apply window level and color map together in a single selection (Hot Iron, Hot Metal Blue, PET Rainbow, Cool, Inverted Gray), with correct SUV-unit windowing. Mammography gains sigmoid VOI LUT support, with correct handling of "For Presentation" vs. "For Processing" images.

Benefit:​

One click gets you the correct look for PET/NM studies, and mammography windowing now matches how those images are meant to be displayed.

4. Three-Tier Preset Configuration​

What changed:​

Presets now resolve through three tiers — System defaults, Organization overrides, and User overrides — so administrators and individual radiologists can customize presets without losing the underlying system defaults.

Benefit:​

Organizations and individual readers can fine-tune presets to their own preferences without breaking the baseline for everyone else.

Important Notes​

• Backward compatible: All original CT preset names are preserved, so existing Hanging Protocols referencing them by name continue to work unchanged.

Where to Find It​

• Window Level Presets: Image Viewer → Window Level tool → preset dropdown (filtered to the active viewport's modality)

Overview​

Blume has been rebuilt to deliver a faster, more reliable experience for viewing studies, scheduling appointments, and sharing results.

The updated platform improves overall speed and reliability. The login and onboarding screens have been refreshed, so they may look different when you first open the updated app.

All existing features—including viewing studies, scheduling appointments, and sharing results—remain available, with improved performance and a smoother overall experience.

What's New​

1. One-Time Sign-In Required​

What changed:​

After installing the update, existing users will be prompted to sign in even if you were signed in before updating the app. Use your current account details; you do not need to create a new account.

Benefit:​

This one-time sign-in enables a smooth move to the rebuilt platform while keeping your account secure and unchanged.

2. Password-Based Login​

What changed:​

Blume will continue to use password-based authentication, and the existing sign-in methods remain unchanged.

Benefit:​

You can continue to sign in with your existing credentials using the same process as before.

Important Notes for Existing Users​

• Sign In vs. Sign Up: After updating Blume, sign in with your existing account. You don't need to create a new account.
• New Visual Design: The login and onboarding screens now have an updated appearance. Your existing data and settings are not affected and will remain available.
• No Feature Changes: All core functionality remains the same. This release is focused on performance and reliability improvements.

Where to Find It​

Blume 2.0 will be available from the App Store and Google Play. Update the mobile app, to use the latest version.

Overview​

The Indicators column on the worklist now shows whether a study's patient has a Blume Patient Portal account, so you no longer need to open the patient record to check.

Overview​

OmegaAI now enables DICOM Stations to be marked as authoritative sources of study identity. When enabled, a study created from an HL7 order that receives images from an authoritative station will use the station's Study Instance UID (0020,000D) as the canonical identifier, replacing OmegaAI's placeholder UID. This resolves bidirectional workflow issues where annotations and reports sent back to source systems could not be matched due to UID mismatches.

What's New​

1. Authoritative DICOM Station Setting​

What changed:​

• New toggle added to DICOM Station device configuration (Organization > Device > DICOM Station Features > Authoritative). Defaults to OFF for all new stations.

Benefit:​

• Administrators can explicitly trust specific PACS and gateways as authoritative sources of study identity, enabling automatic reconciliation of annotations and reports sent back to the source system.

2. Study Instance UID Preservation and Coercion Warnings​

What changed:​

• When Authoritative is enabled and a source UID differs from OmegaAI's order-generated placeholder, the source UID becomes canonical. The placeholder UID is retained in a merged-UID reference table. A C-STORE Warning (0xB000) is returned to the sending system, and the object records an Original Attributes Sequence (0400,0561) with the original UID, modification datetime, modifying system, and COERCE reason code.

Benefit:​

• UID changes are now transparent and auditable. All previous UIDs remain discoverable through QIDO-RS, WADO-RS, C-FIND, and C-MOVE. Existing external references (worklist IDs, prior queries, links in reports) that stored the old UID continue to work.

3. Per-Station Trust Configuration​

What changed:​

• Authoritative setting is configured per DICOM Station device, not globally. Each station is independently marked as trusted or untrusted.

Benefit:​

• A single well-behaved gateway can be marked as authoritative without changing how any other station is treated. Gives administrators fine-grained control over which sources are trusted.

Important Notes​

• Default Behavior: Authoritative is OFF by default for all DICOM Station devices, including newly created ones. No existing configurations change behavior on upgrade.

• When This Setting Takes Effect: The setting only takes effect when a study was created by an HL7 order (placeholder UID) and the DICOM object then matches it by accession. Where studies are created by the DICOM object itself, it never comes into play.

• Bidirectional Workflows Only: Enable Authoritative only for sources where you expect to send annotations, reports, or other derived content back to the source system and require automatic UID-based matching.

• DICOM Station vs Connection Setting: This is a DICOM Station setting, not a connection setting. Ingest reads the receiving station by AE Title, so each station is ticked separately.

• UI Is Not a Safety Boundary: A FHIR PUT /Device sets the value whether or not the toggle switch is visible in the UI.

• Supported Workflows: Re-sending the same study under a different UID is supported. Every superseded UID is kept as an alias, allowing external systems holding an older UID to resolve via the alias.

• Not Recommended For:

  • Sources with UIDs that aren't globally unique (reusing one UID across different studies mis-identifies studies)
  • Unidirectional workflows where there's no risk, just no benefit

• Testing Required: Before enabling Authoritative for a production PACS or gateway, test the bidirectional workflow (send and return annotations) in a non-production environment to verify correct reconciliation at the source.

• Configuration Examples:

  • CSH Compass PACS (Bidirectional Workflow): Navigate to Organization > Device > CSH Compass PACS > DICOM Station Features > Toggle Authoritative ON. Compass UIDs are now canonical; returned annotations carry the original UID and match automatically at CSH.

  • Ultrasound Modality (Unidirectional Workflow): Leave Authoritative OFF. OmegaAI uses the order-generated UID. If the ultrasound re-sends the same exam with a different UID, both sets of objects are stored under the order UID with no UID conflicts.

• DICOM Compliance:

  • C-STORE Warning (0xB000): Returned when Study Instance UID is coerced (per DICOM PS3.4 §B.4)

  • Original Attributes Sequence (0400,0561): Object records original UID, modification datetime, modifying system, and COERCE reason (per DICOM PS3.3 §C.12.1.1.9)

  • Benefits

    1. Bidirectional Reconciliation — Annotations and reports match at the source system without manual intervention or worklist reconciliation.

    2. No Data Loss — All superseded UIDs are retained in the merged-UID reference table and remain queryable and accessible through QIDO-RS, WADO-RS, C-FIND, and C-MOVE.

    3. Transparency and Auditability — C-STORE Warning (0xB000) is returned to the sending system and Original Attributes Sequence (0400,0561) records the original UID and reason code.

    4. Per-Station Configuration — Each DICOM Station is independently marked as trusted or untrusted. One gateway can be authoritative without affecting others.

    5. Safe by Default — OFF by default for all stations. No existing configurations change behavior on upgrade.

Where to Find It​

Location in OmegaAI:

Organization
  └─ Device
      └─ [Select DICOM Station Device]
          └─ Device Details Form
              └─ DICOM Station Features
                  └─ Authoritative ← Toggle is here (last item)

Available On: DICOM Station devices only (not on OmegaAI Link or API devices)

Permission: Read-only when the Device form is in view mode; editable in edit mode, the same as every other field in the DICOM Station Features group. No separate permission applies to this field.

Programmatic access: Can be queried and set through the FHIR Device API (device.extension[where(url='authoritative')].valueBoolean)

Updated Help Articles​

Preserve Study Instance UIDs from Trusted DICOM Sources

Overview​

Sign Delay gives radiologists and reading physicians a brief, configurable window to undo a signed report before it is permanently finalized. Once a report is signed, it enters a Pending Signature state and a countdown begins. When the timer reaches zero, the signature is locked in.

What's New​

1. Pending Signature State After Signing​

What changed:​

Every report now enters a Pending Signature state immediately after signing. A countdown timer begins using the organization's configured delay duration (default: 2 minutes). The signature is not finalized until the countdown reaches zero or the user selects Sign Now.

Benefit:​

Provides a brief review window before the signature is permanently applied, allowing users to address last-minute changes without disrupting the signing workflow.

2. Pending Signatures Panel​

What changed:​

A new Pending Signatures panel is accessible via the bell (notification) icon. After signing, the report is pinned at the top of this panel with a live countdown timer and available actions. The panel is accessible from both the Worklist and the Document Viewer.

Benefit:​

Allows users to monitor and manage pending signatures from a central location without reopening individual reports.

3. Undo and Sign Now Actions​

What changed:​

Users can Undo during the sign delay period to return the report to an editable (unsigned) state. Alternatively, selecting Sign Now bypasses the remaining delay and immediately finalizes the signature. When a report is unsigned and then signed again, the countdown restarts from the full 2-minute delay period. Sign Now is also available on failed reports and immediately finalizes without queue rejoin or additional delay.

Benefit:​

Provides flexibility to make corrections before finalization, complete signing immediately when no additional review is needed, or recover quickly from signing failures.

4. Handling Signing Failures​

What changed:​

If a report fails to sign, users are immediately notified with a failure toast ("Diagnostic report sign failed. Retry signing.") and can access the failed report from the Pending Signatures panel. The failed report displays an error message: "Report could not be signed. Sign now to try again, or cancel signing." Users can select Sign Now to immediately retry the signature or Cancel Sign to revert the report to an editable state.

Benefit:​

Ensures users are always aware of signing failures and can quickly recover by retrying the signature or making corrections before signing again.

5. Administrator Configuration​

What changed:​

Sign Delay is on by default for all organizations — existing and new. Administrators can configure the delay duration or disable the feature via Organization Settings. The valid range is 0.5 to 15 minutes in 0.5-minute increments.

Benefit:​

Gives organizations full control over the delay duration or the ability to opt out of the feature entirely.

To configure Sign Delay:

1. From the OmegaAI home screen, select your organization.
2. Go to Details — a panel opens on the left.
3. Scroll down to Workflow Steps and click to open it.
4. On the toolbar at the top right corner, click the Settings button.
5. Locate Sign Delay and toggle it on or off to enable or disable the feature.
6. Adjust the delay duration as needed. Valid range: 0.5 – 15 minutes in 0.5-minute increments.
7. Save your changes before navigating away.

Important Notes​

• Sign Delay is enabled by default for all organizations, including existing and new users. No opt-in or configuration required.
• Every report enters the sign delay queue when signed — there are no exceptions.
• Only the user who signed the report can undo or edit it while in a Pending Signature state.
• Other users cannot modify the report during the delay period.
• Once the countdown reaches zero, the signature is permanently finalized.
• The default sign delay duration is 2 minutes.
• Delay values can be configured between 0.5 and 15 minutes in 0.5-minute increments.
• A value of 0 is not permitted as a delay duration. To disable Sign Delay, administrators must turn the feature off via the toggle.
• Re-signing after an Undo restarts the full 2-minute countdown from scratch.
• Selecting Sign Now permanently finalizes the report and removes the Undo option.
• If a report fails to sign, users are notified immediately and can retry with Sign Now or revert with Cancel Sign from the Pending Signatures panel.
• Administrators control feature enablement and duration through Organization Settings.
• User Impact:

1. Existing Users: Sign Delay will be active immediately — no action required. After signing any report, users will see the Pending Signatures panel via the bell (notification) icon along with a live countdown banner at the top of the report viewport.
2. New Users: Sign Delay will be active as part of the default organization setup.

Where to Find It​

Administrators: OmegaAI Home → Select Organization → Details → Workflow Steps → Settings → Sign Delay toggle

End users: Bell (notification) icon → Pending Signatures panel

Overview​

Send New Objects Only is now available. It is a per-destination option that sends only the objects a destination does not already hold, instead of re-transmitting the whole study every time.

Overview​

An Order's status now updates on its own as its studies progress. Sign every study on an Order and the Order moves to completed by itself — no manual step, and no finished work still sitting at active.

What's New​

1. Orders reach a status that matches their studies​

What changed:​

When every active study on an Order reaches SIGNED, the Order moves to completed. The same applies across the rest of the workflow: all studies on HOLD moves the Order to on-hold, all studies CANCELLED moves it to revoked, and the first study to reach PATIENT ARRIVED moves a draft Order to active. If work is still outstanding, the Order is left alone.

Benefit:​

Order status is now a dependable signal of where the work actually stands, so worklists, filters and reporting reflect reality without anyone maintaining it by hand.

2. Cancelled and prior studies no longer hold an Order open​

What changed:​

A CANCELLED study stays on its Order but no longer counts as outstanding work, so an Order with one signed study and one cancelled study now reaches completed. Studies at PRIOR — the status a signed study moves to — behave the same way.

Benefit:​

Orders finish when the remaining work finishes, instead of being held open by a study nobody is waiting on.

3. Signing a study no longer re-opens the Order it just finished​

What changed:​

Previously any update to a study moved an on-hold or completed Order back to active — including the very update that should have completed it. Now a study reaching SIGNED or CANCELLED leaves the Order's status alone. Moving a study back to an in-progress status still returns the Order to active, which is intended: the work really has resumed.

Benefit:​

Orders settle instead of oscillating, and there are fewer "Another User has updated this record" conflicts while images are still landing.

Important Notes​

• Existing Orders are not updated retroactively. An Order whose studies were all signed before this release keeps its current status until one of its studies is updated again. This is expected, not a fault.

• Taking an Order off hold does not move its studies back. The studies stay at HOLD and are updated individually.

• Workflow step names matter. These rules are resolved by workflow step name for each organization. An organization with no SIGNED workflow step will never complete Orders — worth checking first if Orders are not completing as expected. Note the step is named PATIENT ARRIVED, even though the study status is displayed as ARRIVED.

• Coverage on a finished Order is now fixed in place. Once an Order reaches completed, revoked or entered-in-error, later changes to patient-level coverage no longer flow down to it. Coverage already recorded on the Order is unchanged.

Where to Find It​

Worklist → right-click a study row → Order → Order panel → Order Status

Order Status is also available as a Worklist column.

Updated Help Articles​

• Study Status — How Order Status is Derived

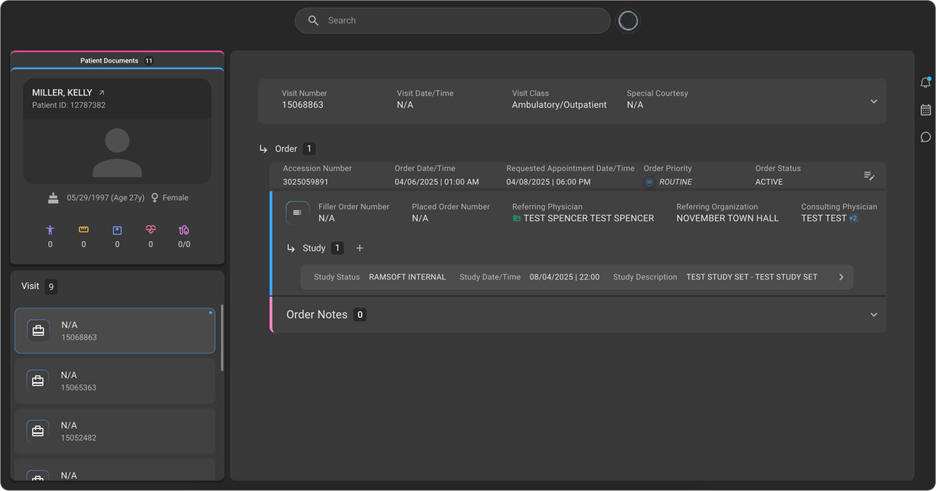

• Visit / Order / Study Page
• Table of Worklist Fields

Overview​

The Create New Order experience has been redesigned with a new full-page drawer that brings all order details — patient, physician, coverage, order sets, notes, and attachments — into a single, structured workflow, replacing the previous narrow side panel.

Note: This feature is currently available to Canadian users at omegaai.ca.
