Document Review Mode

Overview​

Document Review Mode is a sophisticated feature of the OmegaAI Image Viewer designed for efficient management and review of imaging study documents. This feature is especially useful in single monitor setups and is accessible through intuitive UI components. This guide provides detailed instructions on how to navigate and utilize the various functionalities within Document Review Mode.

Accessing Document Review Mode​

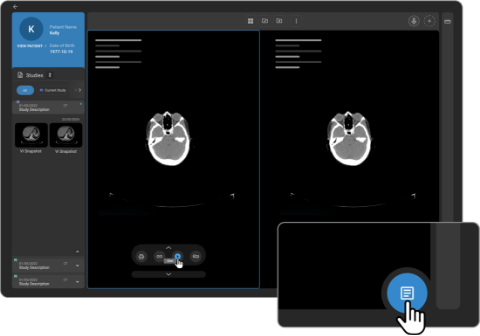

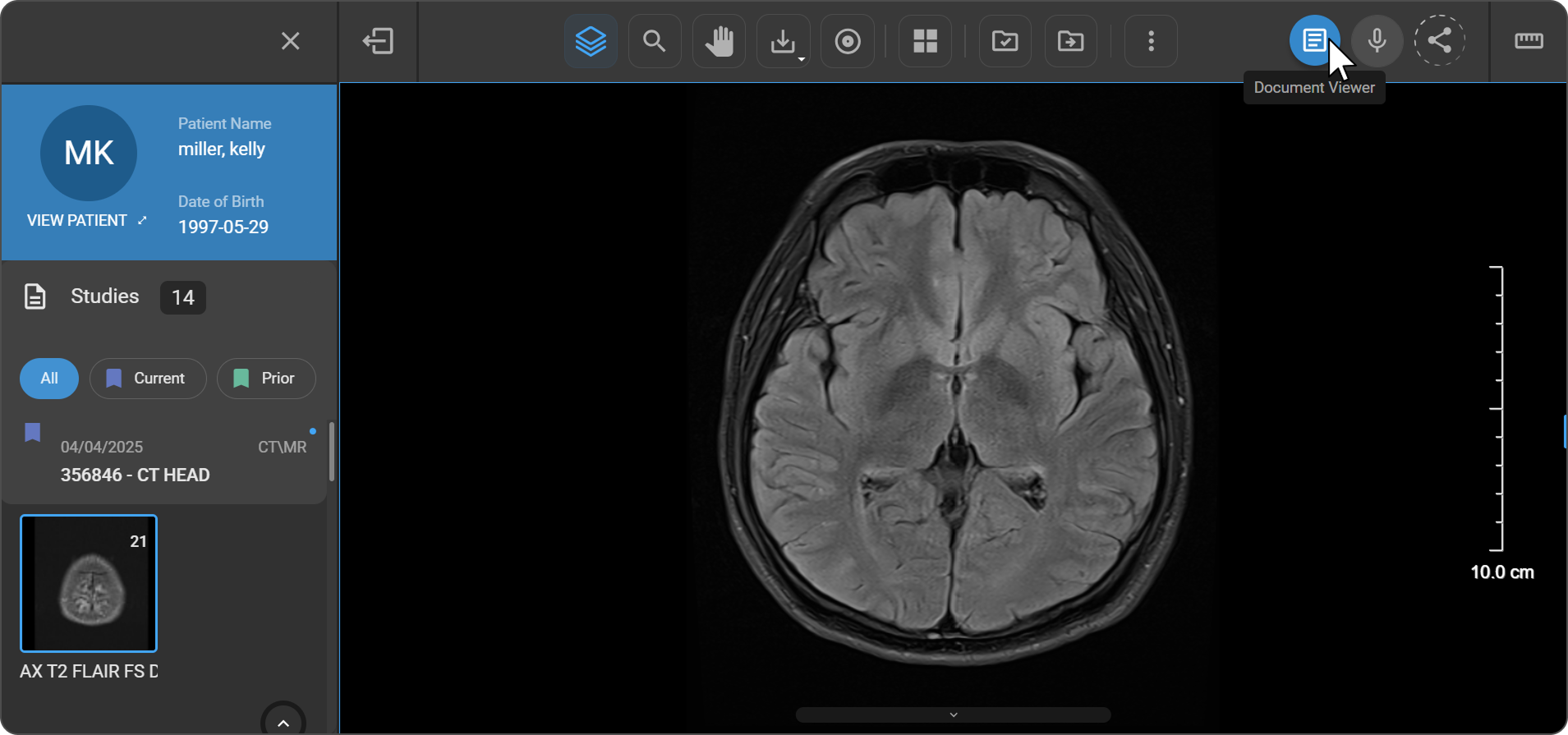

  1. Initiate Document Review Mode: Click on the document icon located at the lower right part of the image viewer interface. This action triggers the Document Review Mode.

    • If a final report has already been created for the study, the system will open this report.

    • If no final report is available, the system will select the most appropriate template for you to start a new report.

      1

Key Features in Document Review Mode​

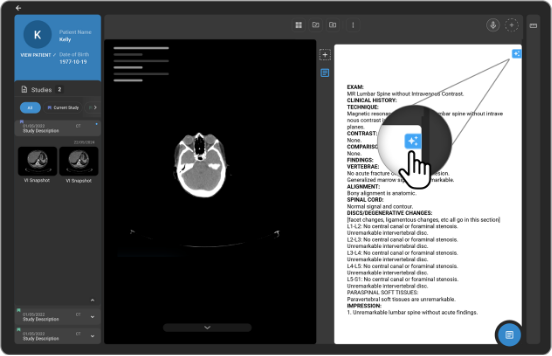

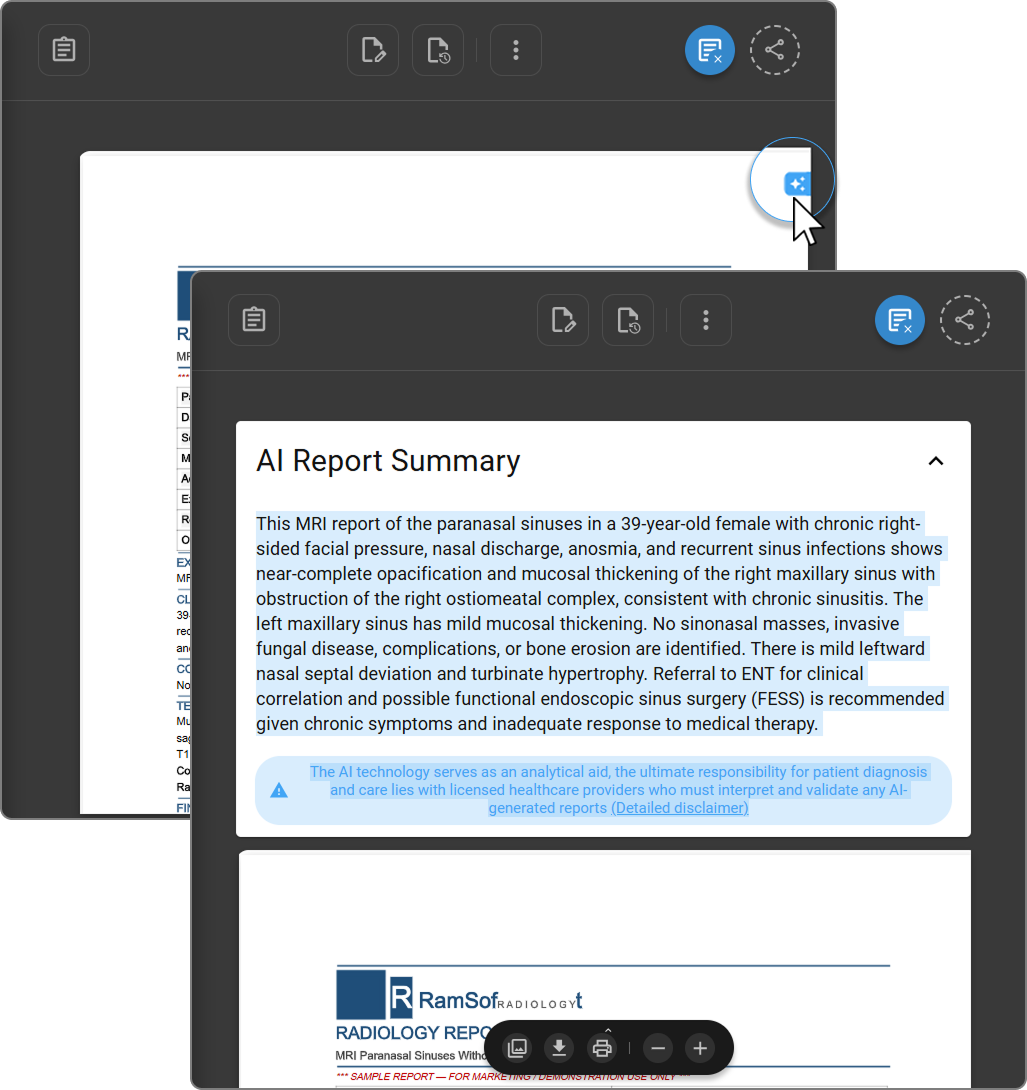

  1. AI Summary:

    • Click the icon at the top right corner of the document viewer to generate a brief AI-powered summary of the report, condensing key findings into a few sentences.

      2

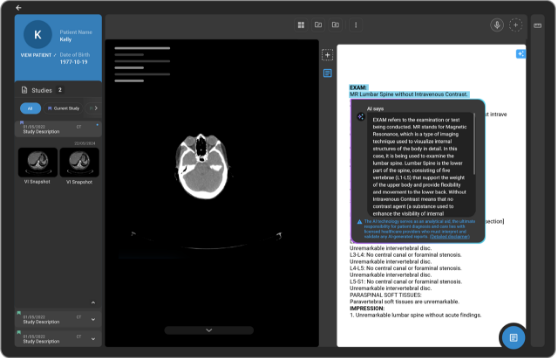

  2. Text Highlighting:

    • Highlight any part of the text within the document to see a simple AI-based description of that section.

    3

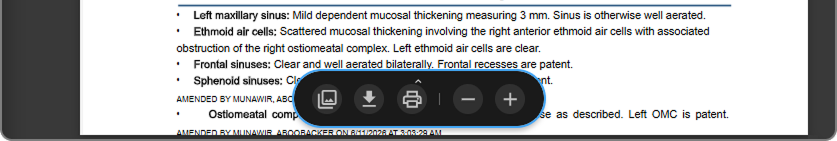

  3. Navigational Toolbar:

    • Hover your mouse over the lower section of the document to access the toolbar, which includes:

      • Thumbnails of all pages (useful for navigating through longer documents).

      • Print options for printing the document directly.

      • Zoom in and zoom out features to adjust the view.

      • A detach option to open the document in a separate, dedicated viewer window.

        4

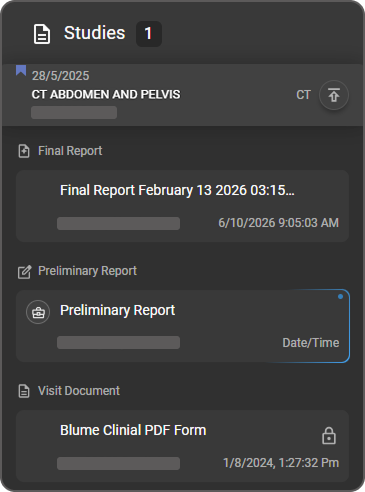

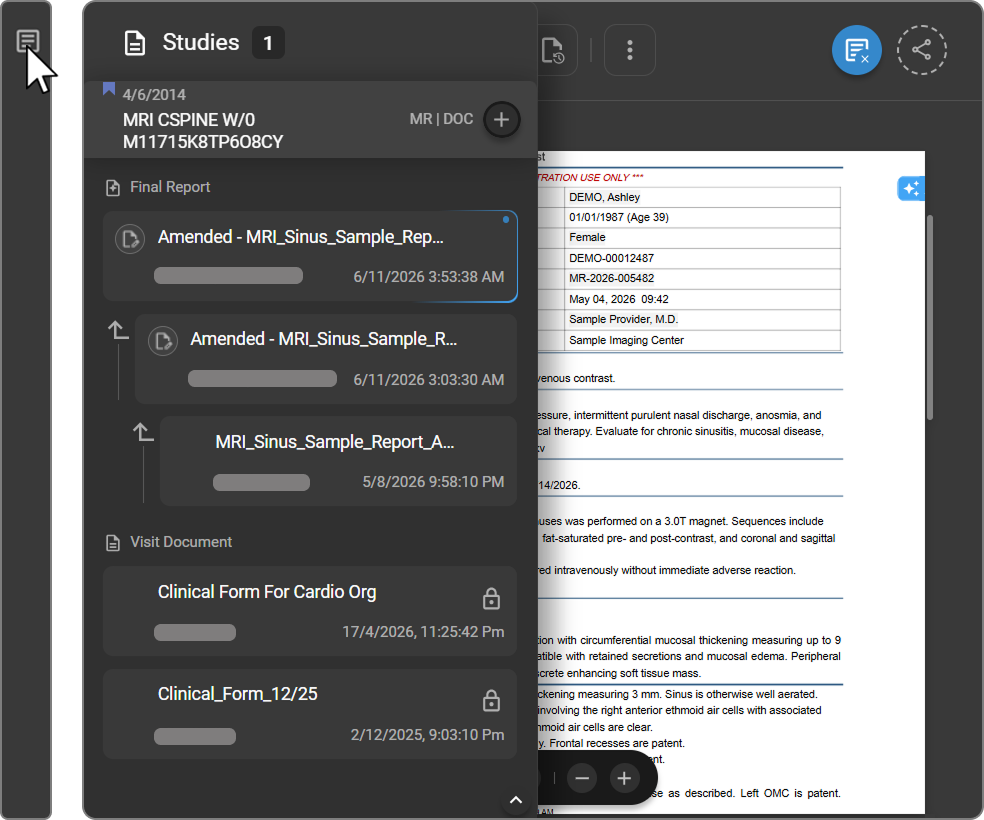

  4. Adding and Reviewing Additional Documents:

    • Click the "+" icon at the left edge of the document review panel.

    • Select and open additional visit documents or prior reports to add them to your review session. These documents will be represented by new icons under the "+" for easy access.

      5

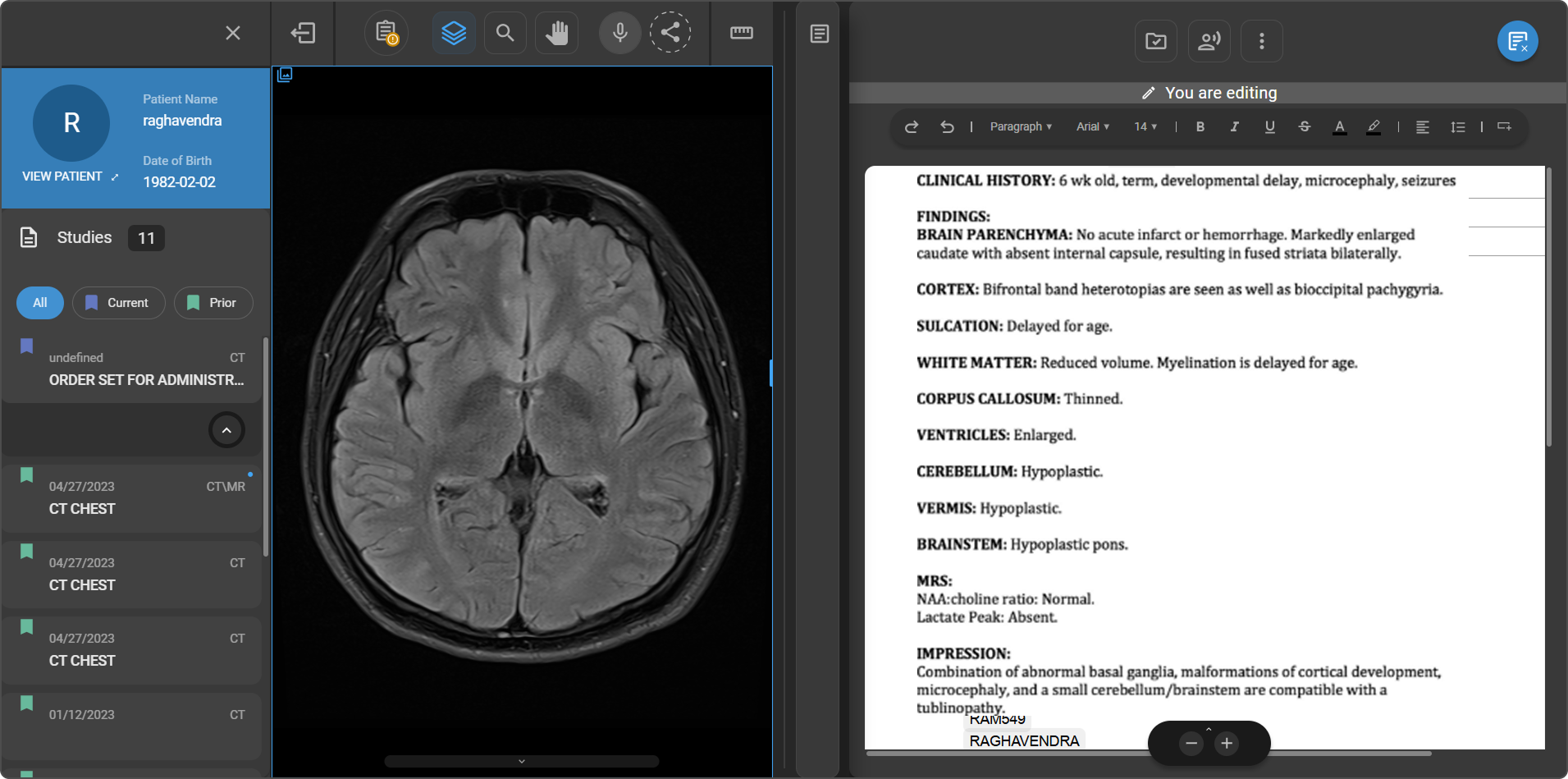

Edit Mode​

  1. Triggering Edit Mode:

    • Edit Mode is automatically activated if you are tasked to create a new report or modify an existing one for the study.

    • In Edit Mode, additional tools appear on the main toolbar of the image viewer:

      • Cancel: Exits the Document Review Mode.

      • Voice to Text: Utilizes an integrated speech-to-text module for hands-free text entry.

      • Detach: Opens the document in a separate viewer window for isolated review.

      • More Options: Provides additional functionalities such as print support and marking critical findings.

Closing Document Review Mode​

  • To exit Document Review Mode, click the same icon that was used to initiate the mode, located at the lower right side of the screen.
